protocol.h File Reference

Protocol definition header. More...

#include <stdint.h>
#include <stddef.h>

Include dependency graph for protocol.h:

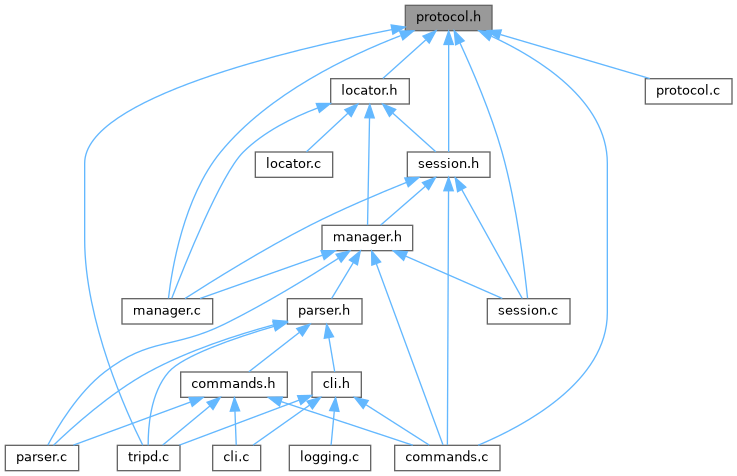

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	MAX_MSG_SIZE   4096
#define	PROTOCOL_VERSION   1
	current protocol version
#define	CAPINFO_TRANS_NULL   (uint32_t)-1
	Capability information NULL transmission mode value.
#define	IS_ATTR_FLAG_WELL_KNOWN(x)
	Message UPDATE.
#define	IS_ATTR_FLAG_TRANSITIVE(x)
#define	IS_ATTR_FLAG_DEPENDENT(x)
#define	IS_ATTR_FLAG_PARTIAL(x)
#define	IS_ATTR_FLAG_LSENCAP(x)
#define	ATTR_FLAG_WELL_KNOWN   0b00000001
#define	ATTR_FLAG_TRANSITIVE   0b00000010
#define	ATTR_FLAG_DEPENDENT   0b00000100
#define	ATTR_FLAG_PARTIAL   0b00001000
#define	ATTR_FLAG_LSENCAP   0b00010000
#define	COMMUNITY_NO_EXPORT   ((community_t){ 0x00000000, 0xffffff01 })
	Community value no-export.
#define	TIMER_CONNECT_RETRY   120
#define	TIMER_HOLD_TIME   90
#define	TIMER_KEEPALIVE   30
#define	TIMER_MAX_PURGE_TIME   10
#define	TIMER_DISABLE_TIME   180
#define	TIMER_MIN_ITAD_ORIG_INT   30
#define	TIMER_MIN_ROUTE_ADVERT_INT   30
#define	PROTO_TCP_PORT   6069
	TCP port as defined by RFC 3219.
#define	PROTO_TRY(o, res, a)
	Try-Catch macro for serialization/deserialization functions.

Typedefs
typedef uint32_t	capinfo_transmode_t
	Capability information transmission mode.
typedef route_t	attr_withdrawnroutes_t[]
	Attribute WithdrawnRoutes.
typedef route_t	attr_reachableroutes_t[]
	Attribute ReachableRoutes.
typedef itadpath_t	attr_advertisementpath_t
	Attribute AdvertisementPath.
typedef itadpath_t	attr_routedpath_t
	Attribute RoutedPath.
typedef void	attr_atomicaggregate_t
	Attribute AtomicAggregate.
typedef uint32_t	attr_localpref_t
	Attribute LocalPreference.
typedef uint32_t	attr_multiexitdisc_t
	Attribute MultiExitDiscriminator.
typedef community_t	attr_communities_t[]
	Attribute Communities.
typedef uint32_t	attr_itadtopology_t[]
	Attribute ITAD Topology.
typedef void	attr_convertedroute_t
	Attribute ConvertedRoute.
typedef void	msg_keepalive_t
	Message KEEPALIVE.
typedef enum runtime_errors_e	runtime_error_t
	Serialization/deserialization runtime errors.

Enumerations
enum	msg_type { MSG_TYPE_OPEN = 1 , MSG_TYPE_UPDATE , MSG_TYPE_NOTIFICATION , MSG_TYPE_KEEPALIVE }
	Message types.
enum	open_opt_type { OPEN_OPT_TYPE_CAPABILITY_INFO = 1 }
	Message OPEN optional parameter types.
enum	capinfo_code { CAPINFO_CODE_ROUTETYPE = 1 , CAPINFO_CODE_TRANSMODE }
	Capability information option types.
enum	capinfo_transmode { CAPINFO_TRANS_SEND_RECV = 1 , CAPINFO_TRANS_SEND , CAPINFO_TRANS_RECV }
	Capability information transmission mode types.
enum	attr_type {   ATTR_TYPE_WITHDRAWNROUTES = 1 , ATTR_TYPE_REACHABLEROUTES , ATTR_TYPE_NEXTHOPSERVER , ATTR_TYPE_ADVERTISEMENTPATH ,   ATTR_TYPE_ROUTEDPATH , ATTR_TYPE_ATOMICAGGREGATE , ATTR_TYPE_LOCALPREFERENCE , ATTR_TYPE_MULTIEXITDISC ,   ATTR_TYPE_COMMUNITIES , ATTR_TYPE_ITADTOPOLOGY , ATTR_TYPE_CONVERTEDROUTE , ATTR_TYPE_RESOURCEPRIORITY ,   ATTR_TYPE_TOTALCIRCUITCAPACITY , ATTR_TYPE_AVAILABLECIRCUITS , ATTR_TYPE_CALLSUCCESS , ATTR_TYPE_E164PREFIX ,   ATTR_TYPE_PENTADECPREFIX , ATTR_TYPE_DECIMALPREFIX , ATTR_TYPE_TRUNKGROUP , ATTR_TYPE_CARRIER }
	UPDATE attribute types. More...
enum	af {   AF_DECIMAL = 1 , AF_PENTADECIMAL , AF_E164 , AF_TRUNKGROUP ,   AF_CARRIER }
	Address families.
enum	app_proto {   APP_PROTO_SIP = 1 , APP_PROTO_H323_225_0_Q931 , APP_PROTO_H323_225_0_RAS , APP_PROTO_H323_225_0_ANNEXG ,   APP_PROTO_IAX2 = 32768 }
	Application protocols. More...
enum	itadpath_type { ITADPATH_TYPE_AP_SET = 1 , ITADPATH_TYPE_AP_SEQUENCE }
	ITAD path types.
enum	notif_code {   NOTIF_CODE_ERROR_MSG = 1 , NOTIF_CODE_ERROR_OPEN , NOTIF_CODE_ERROR_UPDATE , NOTIF_CODE_ERROR_EXPIRED ,   NOTIF_CODE_ERROR_STATE , NOTIF_CODE_CEASE }
	NOTIFICATION error code.
enum	notif_subcode_msg { NOTIF_SUBCODE_MSG_BAD_LEN = 1 , NOTIF_SUBCODE_MSG_BAD_TYPE }
	NOTIFICATION error subcode for message.
enum	notif_subcode_open {   NOTIF_SUBCODE_OPEN_UNSUP_VERSION = 1 , NOTIF_SUBCODE_OPEN_BAD_ITAD , NOTIF_SUBCODE_OPEN_BAD_ID , NOTIF_SUBCODE_OPEN_UNSUP_OPT ,   NOTIF_SUBCODE_OPEN_BAD_HOLD , NOTIF_SUBCODE_OPEN_UNSUP_CAP , NOTIF_SUBCODE_OPEN_CAP_MISMATCH }
	NOTIFICATION error subcode for OPEN.
enum	notif_subcode_update {   NOTIF_SUBCODE_UPDATE_MALFORM_ATTR = 1 , NOTIF_SUBCODE_UPDATE_UNK_WELLKNOWN_ATTR , NOTIF_SUBCODE_UPDATE_MISS_WELLKNOWN_ATTR , NOTIF_SUBCODE_UPDATE_BAD_ATTR_FLAG ,   NOTIF_SUBCODE_UPDATE_BAD_ATTR_LEN , NOTIF_SUBCODE_UPDATE_INVAL_ATTR }
	NOTIFICATION error subcode for UPDATE.
enum	runtime_errors_e {   ERROR_BUFF = -1 , ERROR_BUFFLEN = -2 , ERROR_HOLD = -3 , ERROR_ITAD = -4 ,   ERROR_NOTIF_ERROR_CODE = -5 , ERROR_NOTIF_ERROR_SUBCODE = -6 , ERROR_INCOMPLETE = -7 , ERROR_MSGTYPE = -8 ,   ERROR_VERSION = -9 , ERROR_OPT = -10 , ERROR_CAPINFO_CODE = -11 , ERROR_AF = -12 ,   ERROR_APP_PROTO = -13 , ERROR_TRANS = -14 , ERROR_ATTR_TYPE = -15 , ERROR_ATTR_FLAG_WELL_KNOWN = -16 ,   ERROR_ATTR_FLAG_LSENCAP = -17 , ERROR_ITADPATH_TYPE = -18 , ERROR_COMMUNITY_ITAD = -19 }
	Serialization/deserialization runtime errors. More...

Functions
struct	__attribute__ ((packed))
	Message header.
const char *	app_proto_str (int app_proto)
	Application protocol to string.
runtime_error_t	new_msg_open (void *buff, size_t len, uint16_t hold, uint32_t itad, uint32_t id, const capinfo_routetype_t *capinfo_routetypes, size_t routetypes_size, capinfo_transmode_t capinfo_transmode)
	Serialize OPEN message.
runtime_error_t	new_msg_update (void *buff, size_t len, const msg_update_attr_t **attrs, size_t attrs_size)
	Serialize UPDATE message.
runtime_error_t	new_msg_keepalive (void *buff, size_t len)
	Serialize KEEPALIVE message.
runtime_error_t	new_msg_notif (void *buff, size_t len, uint8_t error_code, uint8_t error_subcode, size_t datalen, const void *data)
	Serialize NOTIFICATION message.
runtime_error_t	new_attr_withdrawnroutes (void *buff, size_t len, int lsencap, uint32_t id, uint32_t seq, const route_t **routes, size_t routes_size)
	Serialize WithdrawnRoutes attribute.
runtime_error_t	new_attr_reachableroutes (void *buff, size_t len, int lsencap, uint32_t id, uint32_t seq, const route_t **routes, size_t routes_size)
	Serialize ReachableRoutes attribute.
runtime_error_t	new_attr_nexthopserver (void *buff, size_t len, uint32_t next_itad, const char *server)
	Serialize NextHopServer attribute.
runtime_error_t	new_attr_advertisementpath (void *buff, size_t len, const itadpath_t *path)
	Serialize AdvertisementPath attribute.
runtime_error_t	new_attr_routedpath (void *buff, size_t len, const itadpath_t *path)
	Serialize RoutedPath attribute.
runtime_error_t	new_attr_atomicaggregate (void *buff, size_t len)
	Serialize AtomicAggregate attribute.
runtime_error_t	new_attr_localpref (void *buff, size_t len, uint32_t localpref)
	Serialize LocalPref attribute.
runtime_error_t	new_attr_multiexitdisc (void *buff, size_t len, uint32_t metric)
	Serialize MultiExitDisc attribute.
runtime_error_t	new_attr_communities (void *buff, size_t len, const community_t *communities, size_t communities_size)
	Serialize Communities attribute.
runtime_error_t	new_attr_itadtopology (void *buff, size_t len, uint32_t id, uint32_t seq, const uint32_t *itads, size_t itads_size)
	Serialize ITAD Topology attribute.
runtime_error_t	new_attr_convertedroute (void *buff, size_t len)
	Serialize ConvertedRoute attribute.
runtime_error_t	parse_msg (const void *buff, size_t len, const msg_t **msg_out)
	Deserialize message.
runtime_error_t	parse_msg_open (const void *buff, size_t len, const msg_open_t **open_out)
	Deserialize message OPEN.
runtime_error_t	parse_msg_open_opt (const void *buff, size_t len, const msg_open_opt_t **opt_out)
	Deserialize message OPEN optional parameter.
runtime_error_t	parse_capinfo (const void *buff, size_t len, const capinfo_t **capinfo_out)
	Deserialize option capability information.
runtime_error_t	parse_capinfo_routetype (const void *buff, size_t len, const capinfo_routetype_t **routetype_out)
	Deserialize option route type.
runtime_error_t	parse_capinfo_transmode (const void *buff, size_t len, const capinfo_transmode_t **transmode_out)
	Deserialize option transmission mode.
runtime_error_t	parse_msg_update_attr (const void *buff, size_t len, const msg_update_attr_t **attr_out)
	Deserialize UPDATE attribute.
runtime_error_t	parse_msg_update_attr_lsencap (const void *buff, size_t len, const msg_update_attr_lsencap_t **attr_out)
	Deserialize UPDATE link-state encapsulated attribute.
runtime_error_t	parse_route (const void *buff, size_t len, const route_t **route_out)
	Deserialize route.
runtime_error_t	parse_itadpath (const void *buff, size_t len, const itadpath_t **itadpath_out)
	Deserialize ITAD path.
runtime_error_t	parse_attr_localpref (const void *buff, size_t len, const attr_localpref_t **localpref_out)
	Deserialize LocalPreference attribute.
runtime_error_t	parse_attr_multiexitdisc (const void *buff, size_t len, const attr_multiexitdisc_t **multiexitdisc_out)
	Deserialize MultiExitDisc attribute.
runtime_error_t	parse_community (const void *buff, size_t len, const community_t **community_out)
	Deserialize Community.
runtime_error_t	parse_itad (const void *buff, size_t len, const uint32_t **itad_out)
	Deserialize ITAD.
runtime_error_t	parse_msg_notif (const void *buff, size_t len, const msg_notif_t **notif_out)
	Deserialize NOTIFICATION message.
const char *	notif_code_subcode_str (int code, int subcode)
	String NOTIFICATION code, subcode.

Variables
const char *	msg_type_strs []
	Message type strings.
	msg_t
const char *	open_opt_type_strs []
	Message type strings.
	msg_open_opt_t
	msg_open_t
const char *	capinfo_code_strs []
	Capability information option type strings.
	capinfo_t
	capinfo_routetype_t
const char *	capinfo_transmode_strs []
	Capability information transmission mode types strings.
	msg_update_attr_t
	msg_update_attr_lsencap_t
const char *	af_strs []
	Address family strings.
	route_t
	attr_nexthopserver_t
	itadpath_t
	community_t
const char *	notif_code_strs []
	NOTIFICATION error code strings.
const char *	notif_subcode_msg_strs []
	NOTIFICATION error subcode for message strings.
const char *	notif_subcode_open_strs []
	NOTIFICATION error subcode for OPEN strings.
const char *	notif_subcode_update_strs []
	NOTIFICATION error subcode for UPDATE strings.
const char **	notif_code_subcodes_strs []
	subcode strings per code class
	msg_notif_t
const char *	runtime_error_strs []
	Serialization/deserialization runtime error strings.
const capinfo_routetype_t	supported_routetypes []
	Supported routetypes constant.
const size_t	supported_routetypes_size
	Supported routetypes constant size.

Detailed Description

Protocol definition header.

Macro Definition Documentation

CAPINFO_TRANS_NULL

#define CAPINFO_TRANS_NULL   (uint32_t)-1

Capability information NULL transmission mode value.

Only for serializer

IS_ATTR_FLAG_DEPENDENT

#define IS_ATTR_FLAG_DEPENDENT

(

x

)

Value:

((x >> 2) & 1)

IS_ATTR_FLAG_LSENCAP

#define IS_ATTR_FLAG_LSENCAP

(

x

)

Value:

((x >> 4) & 1)

IS_ATTR_FLAG_PARTIAL

#define IS_ATTR_FLAG_PARTIAL

(

x

)

Value:

((x >> 3) & 1)

IS_ATTR_FLAG_TRANSITIVE

#define IS_ATTR_FLAG_TRANSITIVE

(

x

)

Value:

((x >> 1) & 1)

IS_ATTR_FLAG_WELL_KNOWN

#define IS_ATTR_FLAG_WELL_KNOWN

(

x

)

Value:

((x >> 0) & 1)

Message UPDATE.

Unpadded list of attributes, dAttributes defined by RFCs are "Well-Known", and should have the WELL_KNOWN bit set.

attr_flag is a bitfield bit flag 0 Well-Known Flag 1 Transitive Flag 2 Dependent Flag 3 Partial Flag 4 Link-state Encapsulated Flag

PROTO_TRY

#define PROTO_TRY	(		o,
			res,
			a )

Value:

res = o; \
if (res < 0) { \
    ERROR("protocol error: %s", runtime_error_strs[-res]); \
    a; \
}

Try-Catch macro for serialization/deserialization functions.

Typedef Documentation

attr_advertisementpath_t

typedef itadpath_t attr_advertisementpath_t

Attribute AdvertisementPath.

flags: well-known mandatory if ReachableRoutes or WithdrawnRoutes present list of ITAD path segments

attr_atomicaggregate_t

typedef void attr_atomicaggregate_t

Attribute AtomicAggregate.

flags: well-known no value

attr_communities_t

typedef community_t attr_communities_t[]

Attribute Communities.

flags: well-known, transitive list of communities

attr_convertedroute_t

typedef void attr_convertedroute_t

Attribute ConvertedRoute.

flags: well-known no value

attr_itadtopology_t

typedef uint32_t attr_itadtopology_t[]

Attribute ITAD Topology.

flags: well-known, link-state encapsulated list of peer ITADs

attr_multiexitdisc_t

typedef uint32_t attr_multiexitdisc_t

Attribute MultiExitDiscriminator.

flags: well-known

attr_reachableroutes_t

typedef route_t attr_reachableroutes_t[]

Attribute ReachableRoutes.

flags: well-known, [link-state encapsulation] list of unpadded routes (see above)

attr_routedpath_t

typedef itadpath_t attr_routedpath_t

Attribute RoutedPath.

flags: well-known mandatory if ReachableRoutes present syntax same as AdvertisementPath

attr_withdrawnroutes_t

typedef route_t attr_withdrawnroutes_t[]

Attribute WithdrawnRoutes.

flags: well-known, [link-state encapsulation] list of unpadded routes

msg_keepalive_t

typedef void msg_keepalive_t

Message KEEPALIVE.

no value

Enumeration Type Documentation

app_proto

enum app_proto

Application protocols.

Enumerator
APP_PROTO_SIP	RFC3219 SIP
APP_PROTO_H323_225_0_Q931	H.323-H.225.0-Q.931
APP_PROTO_H323_225_0_RAS	H.323-H.225.0-RAS
APP_PROTO_H323_225_0_ANNEXG	H.323-H.225.0-Annex-G
APP_PROTO_IAX2	Vendor vendor specific asterisk IAX2 (RFC 5456)

attr_type

enum attr_type

UPDATE attribute types.

Enumerator
ATTR_TYPE_WITHDRAWNROUTES	RFC3219
ATTR_TYPE_RESOURCEPRIORITY	RFC5115
ATTR_TYPE_TOTALCIRCUITCAPACITY	RFC5140

runtime_errors_e

enum runtime_errors_e

Serialization/deserialization runtime errors.

Enumerator
ERROR_BUFF	Invalid buffer
ERROR_BUFFLEN	Not enough buffer
ERROR_HOLD	Hold time must be 0 or at least 3 s
ERROR_ITAD	ITAD must not be 0 (reserved)
ERROR_NOTIF_ERROR_CODE	Invalid NOTIFICATION error code
ERROR_NOTIF_ERROR_SUBCODE	Invalid NOTIFICATION error subcode
ERROR_INCOMPLETE	Passed an incomplete message, recv more
ERROR_MSGTYPE	Invalid message type
ERROR_VERSION	Unsupported protocol version
ERROR_OPT	Unsupported OPEN option param
ERROR_CAPINFO_CODE	Unsupported capability info code
ERROR_AF	Unsupported address family
ERROR_APP_PROTO	Unsupported application protocol
ERROR_TRANS	Invalid send/recv capability
ERROR_ATTR_TYPE	Unsupported attribute type
ERROR_ATTR_FLAG_WELL_KNOWN	Attribute should have well-known
ERROR_ATTR_FLAG_LSENCAP	Attribute must be link-state encapsul
ERROR_ITADPATH_TYPE	Unsupported ITAD path type
ERROR_COMMUNITY_ITAD	Reserved community ITAD with bad ID

Function Documentation

__attribute__()

struct __attribute__

(

(packed)

)

Message header.

Message NOTIFICATION.

Community.

ITAD path.

Attribute NextHopServer.

Route.

UPDATE link-state encapsulated attribute.

UPDATE attribute.

Capability information supported route types.

Capability information option.

Message OPEN.

Message OPEN optional paramter.

flags: well-known server: host [":" port] host: hostname, IPv4 dotted format or IPv6 enclosed in "[" "]" port: decimal number 1-65535

< Number of ITADs in path seg

< ITAD numbers path

Here is the call graph for this function:

Here is the caller graph for this function:
