session.h File Reference

Session logic. More...

#include "locator.h"
#include <protocol/protocol.h>
#include <util/util.h>
#include <db/trib.h>
#include <netinet/in.h>

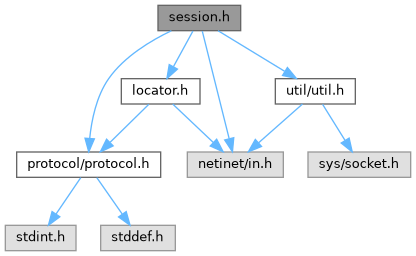

Include dependency graph for session.h:

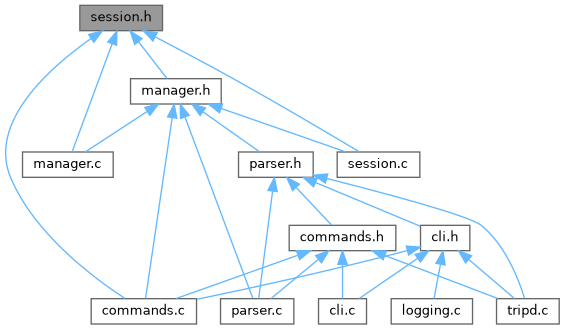

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	session_t
	Session object. More...

Enumerations
enum	session_state_t {   STATE_IDLE , STATE_CONNECT , STATE_ACTIVE , STATE_OPENSENT ,   STATE_OPENCONFIRM , STATE_ESTABLISHED }
	Session states.

Functions
void	session_change_state (session_t *s, session_state_t new_state)
	Change session state.
int	send_notification (int fd, int code, int subcode)
	Send notification helper.
const char *	id_str (uint32_t id)
	LSID string.
void *	session_loop (void *arg)
	Session loop.
void	session_update (const session_t *s, uint32_t local_id, uint32_t local_itad)
	Update session.
void	session_shutdown (session_t *session)
	Shutdown socket, terminate connection and thread.
void	session_destroy (session_t *session)
	Destroy session object.

Variables
const char *	session_state_strs []
	Session state strings.

Detailed Description

Session logic.

Logic for session communication, receive loop thread

Function Documentation

session_loop()

void * session_loop

(

void *

arg

)

Session loop.

Parameters

arg	Of type (void*){ manager_t *m, session_t *s }

Here is the call graph for this function:

session_update()

void session_update	(	const session_t *	s,
		uint32_t	local_id,
		uint32_t	local_itad )

Update session.

Send UPDATEs to peer according to new entries in Adj-TRIB-Out

Here is the call graph for this function:
