trib.h File Reference

Telephony Routing Information Base. More...

#include <protocol/protocol.h>
#include "pib.h"
#include <stddef.h>
#include <time.h>

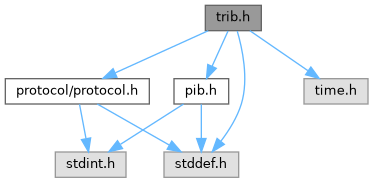

Include dependency graph for trib.h:

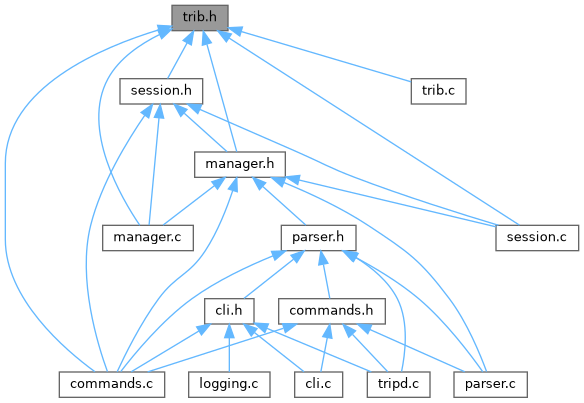

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	entry_attrs_t
	Groupable attributes that are related to a route. More...
struct	entry_t
	Route Entry. More...
struct	table_t
	Route Table. More...
struct	entry_group_t
struct	trib_t
	Telephony Routing Information Base. More...

Macros
#define	ATTR_USED_NEXTHOP   0b1
#define	ATTR_USED_ADVERTPATH   0b10
#define	ATTR_USED_ROUTEDPATH   0b100
#define	ATTR_USED_LOCALPREF   0b1000
#define	ATTR_USED_METRIC   0b10000
#define	ATTR_USED_COMMUNITIES   0b100000
#define	ATTR_IS_USED_NEXTHOP(x)
#define	ATTR_IS_USED_ADVERTPATH(x)
#define	ATTR_IS_USED_ROUTEDPATH(x)
#define	ATTR_IS_USED_LOCALPREF(x)
#define	ATTR_IS_USED_METRIC(x)
#define	ATTR_IS_USED_COMMUNITIES(x)

Enumerations
enum	entry_type_t { ENTRY_TYPE_TRIP , ENTRY_TYPE_CONNECTED , ENTRY_TYPE_STATIC }

Functions
void	entry_destroy (entry_t *entry)
	Destroy entry.
void	trib_table_deinit (table_t *t)
	Deinitialize table.
trib_t *	trib_new (uint32_t local_itad)
	Initialize TRIB structure.
void	trib_adj_pair_add (trib_t *trib, table_t *in, table_t *out)
	Add and init pair of tables owned by caller.
void	trib_adj_pair_remove (trib_t *trib, table_t *in, table_t *out)
void	trib_destroy (trib_t *trib)
	Deinit TRIB structure.
void	trib_table_insert (table_t *table, entry_t *route)
	Add route to table.
void	trib_table_clear (table_t *table)
	Destroy all entries and clear table.
void	trib_update_local (trib_t *trib)
	Update local routes when ITAD is defined.
void	trib_update_adj_out (trib_t *trib, table_t *adj_trib_out)
	Update an Adj-TRIB-Out.
void	trib_update_full (trib_t *trib)
	Execute route selection.
size_t	get_new_entries (const table_t *table, entry_t ***new_ents_out)
	Return array of new entry references to new.
size_t	group_entries_by_attrs (entry_t **entries, size_t entries_size, entry_group_t **groups_out)
	Group array of entry references by attributes.

Detailed Description

Telephony Routing Information Base.

Macro Definition Documentation

ATTR_IS_USED_ADVERTPATH

#define ATTR_IS_USED_ADVERTPATH

(

x

)

Value:

(((x) >> 1) & 1)

ATTR_IS_USED_COMMUNITIES

#define ATTR_IS_USED_COMMUNITIES

(

x

)

Value:

(((x) >> 5) & 1)

ATTR_IS_USED_LOCALPREF

#define ATTR_IS_USED_LOCALPREF

(

x

)

Value:

(((x) >> 3) & 1)

ATTR_IS_USED_METRIC

#define ATTR_IS_USED_METRIC

(

x

)

Value:

(((x) >> 4) & 1)

ATTR_IS_USED_NEXTHOP

#define ATTR_IS_USED_NEXTHOP

(

x

)

Value:

(((x) >> 0) & 1)

ATTR_IS_USED_ROUTEDPATH

#define ATTR_IS_USED_ROUTEDPATH

(

x

)

Value:

(((x) >> 2) & 1)

Function Documentation

get_new_entries()

size_t get_new_entries	(	const table_t *	table,
		entry_t ***	new_ents_out )

Return array of new entry references to new.

Allocates array of references and assigns it to new_ents_out

Parameters

table	Table with new entries
new_ents_out	Where to put entry references

Returns

Number of new entries

Here is the caller graph for this function:

group_entries_by_attrs()

size_t group_entries_by_attrs	(	entry_t **	entries,
		size_t	entries_size,
		entry_group_t **	groups_out )

Group array of entry references by attributes.

Parameters

entries	Input array
entries_size	Input array size
groups_out	Output entry reference groups

Returns

Number of groups

Here is the caller graph for this function:

trib_update_adj_out()

void trib_update_adj_out	(	trib_t *	trib,
		table_t *	adj_trib_out )

Update an Adj-TRIB-Out.

For use when a new peer connets and we have to UPDATE it without triggering a full update

Here is the call graph for this function:

Here is the caller graph for this function:

trib_update_full()

void trib_update_full

(

trib_t *

trib

)

Execute route selection.

Takes Ext-TRIBs-in and locala routes Updates Ext-TRIB, Loc-TRIB, optimized Loc-TRIB and Ext-TRIBs-out

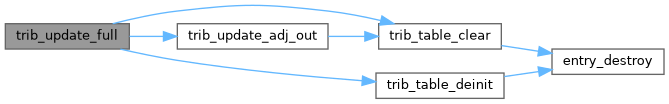

Here is the call graph for this function:

Here is the caller graph for this function:
